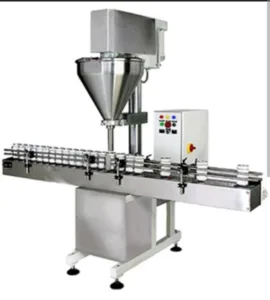

JAR FILLING MACHINE WITH CONVEYOR
Automatic Vertical Powder Filling Machines with Servo motor controlled Auger filler is used to Fill Powder as Spices Powder, Milk Powder, Protein Powder, Coffee powder, Flour, Maida, Besan, Sattu, Chemicals and Pesticides etc upto 10 kg. (with different models).
Spice Packing
Flour Packing
Protein Powder
Pouch Format
Technical Specification
Product Application | 2 gram to 10 kg ( By Different Model ) |
Pouch Size / Jar Size | To Be Confirm |
Sealing Type | To Be Confirm |
Packing Speed | 5-30 Jar/Min ( Depending up on the Product Characteristics and weight) |
Filling System | Clutch Break / Servo Motor Controlled Auger Screw |
Hopper Capacity | 30 kg (SS-316 Food Grade) |
Main Body Type | Fabricated (MS) |
Main Motor | Servo / Ac induction Motor ( for Screw ) 3 Phase , 440 V Ac ( For Stirrer ) |
Mechanical Parts | EN Series |
Main Body Covers | MS with Powder Coated or SS |
All Product Contact Parts | SS 304 Made |
Electrical Components | Standard Quality |
Conveyor Length | As per your Requirment |
Electrical Power | 3 phase , 440 VAC , 3 kw max |
Machine Dimension | 38 x 30 x 85 (L x W x H In Inches) |
Machines Weight | 300 Kg (Approx) |
